CB Electric Pizza Ovens - FP Series

  CB Electric Pizza Ovens


  ELECTRIC PIZZA OVENS, COOKING BASE IN LAVA ROCK MATERIAL




  • Baking chamber entirely made in steel.

  • Bottom of oven in lava rock material (slab thickness mm.30).

  • Independent temperature regulation of the top and of the bed.

  • Electromechanical and electronic versions.

  • Temperature 0�-450�C for electronic version. Temperature 0�-500�C for manual version.

  • Cooking with or without baking pans.

  • Possibility to program the starting of the oven into the following 24 hours (only for the electronic version).

  • Amour plated resistances in the top and in the bad.

  • Flap door with window.

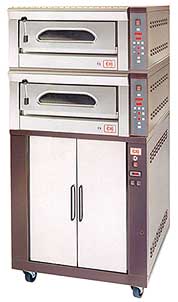

  • Available with leavening store (leavening chamber and doors made in steel) or with steel support.


FP4E
CL4
2/FP6E
CL6
3/FP6M
Easel




electric
pizza oven		 width height depth n.
chambers		 chamber
width 		chamber
height 		chamber
depth 		n. pizzas n. baking-pans voltage power

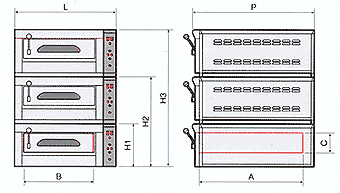

L mm H1 mm H2 mm H3 mm P mm B mm C mm A mm kw
FP4E
FP4M
 925 400     800 1 620 145 620 4 2
(590x300)		 230V~
230V 3~
400V 3N~		 3,9
FP6E
FP6M
 925 400     1100 1 620 145 920 6 2
(590x450) 		230V~
230V 3~
400V 3N~		 6,6
FP6E-REV
FP6M-REV
 1225 400     800 1 920 145 620 6 2
(590x450)		 230V~
230V 3~
400V 3N~		 6,5
2/FP4E
2/FP4M
 925   840   800 2 620 145 620 8 4
(590x300) 		230V 3~
400V 3N~		 7,8
2/FP6E
2/FP6M
 925   840   1100 2 620 145 920 12 4
(590x450) 		230V 3~
400V 3N~		 13,2
2/FP6E-REV
2/FP6M-REV
 1225   840   800 2 920 145 620 12 2
(590x450) 		230V 3~
400V 3N~		 13

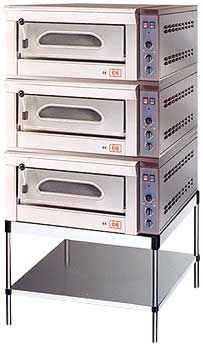

3/FP6E
3/FP6M
 925     1280 1100 3 620 145 920 18 6
(590x450) 		230V 3~
400V 3N~		 19,8
3/FP6E-REV
3/FP6M-REV
 1225     1280 800 3 920 145 620 18 6
(590x450)		 230V 3~
400V 3N~		 19,5




NEW
Electric pizza oven Dimensions LxPxH N. Chambers Chamber dimensions BxAxC N. Pizzas N. Baking-pans Voltage Power
FP9E
FP9M		 1225x1120x400 mm 1 920x920x145 mm 9 4
(590x300)		 230V 3~ 400V 3N~ 11,4 KW
2/FP9E
2/FP9M		 1225x1120x840 mm 2 920x920x145 mm 18 8
(590x300)		 230V 3~ 400V 3N~ 22,8 KW
3/FP9E
3/FP9M		 1225x1120x1280 mm 3 920x920x145 mm 27 12
(590x300)		 230V 3~ 400V 3N~ 33,2 KW

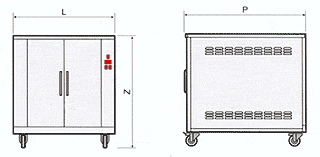

Static leavening cell


cell width height depth n. shelves n.baking-pans voltage power
L mm Z mm P mm KW
CL4
 925 1100 800 7 14 (590X300) 230 V~ 1,4
CL6
 925 1100 1100 7 14 (590X450) 230 V~ 1,4


Stand

Stand width height depth
L mm Z mm P mm
FP4
 925 1100 800
FP6
 925 1100 1100
FP6-REV
 1225 1100 800
2/FP4
 925 1100 800
2/FP6
 925 1100 1100
2/FP6 - REV
 1225 1100 800
3/FP6
 925 660 1100
3/FP6 - REV
 1225 660 800




NEW
Stand Width Depth Height
FP9 1225 1120 1100
2/FP9 1225 1120 1100
3/FP9 1225 1120 660
