Marsal MB Series

For the baking power of an old fashioned brick oven that just won't quit!

All MB ovens come from the factory unfinished with 18 gauge aluminized steel exterior. Ovens are fully enclosed, ready to be finished in tile or brick. A limestone or granite kit is also available from our factory.

MB 60 Stacked (unfinished)

  • The bottom oven of our stacked units has the same features as our top oven
  • Concealed Thermostat and Safety Valve behind a vented control door
  • Oven burners run left to right for the best heat distribution (106� of burner in the MB-60 model and 67� of burner in the MB-42 model)
  • Powder coated finishing on doors
  • Flue damper allows more control of top and bottom heat
  • Thermostatically controlled from 300� to 650� F
  • Hard wood handle gives it that �old world look�
  • Arched refractory brick-lined ceiling inside the baking chamber
  • 2� thick fire brick cooking surface
  • Refractory brick-lined rear of backing chamber
  • Up to 4� of fiberglass insulation allowing 0� clearance rear & sides. �The best in the industry� means less heat loss into the kitchen
  • Full length 10-gauge heat diverters
  • 100-watt quartz halogen lamp brightly lights entire baking chamber for both you and your customer
  • Manufactured using 18-gauge aluminized steel both inside and outside
  • As easy to operate as any deck oven
  • Can fit through any 36� wide door
  • �� gas connection located in rear of oven
  • 115 VAC, 60 Hz
  • One year warranty on labor
  • 18 month warranty on parts
  • UL Safety and UL Sanitation Listed

The arched refractory brick-lined ceiling develops more of a heat synchronization enabling the oven to maintain temperature more efficiently and evenly.



Options:

  • Limestone and Granite Finishing Kits available
  • Stainless steel front and side units available
  • Flat top or Flat dome models available.
  • Side gas connection

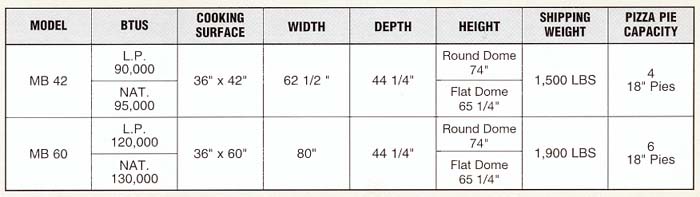

Single Model Specifications

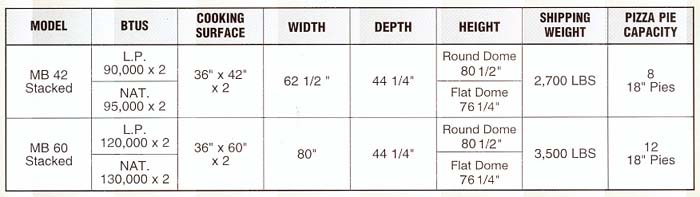

Stacked Model Specifications
